Hi Matt, Have you tried running the mesh and found an issue or is it just related to the image? If it is related to the image only, try FieldConvert -n 2 mesh.xml mesh.vtu and you are not going to see the quadrature points as in your image. Cheers, Filipe On Mon, Mar 1, 2021 at 2:30 AM Matt Duran <matt.duran60@gmail.com> wrote:

This email from matt.duran60@gmail.com originates from outside Imperial. Do not click on links and attachments unless you recognise the sender. If you trust the sender, add them to your safe senders list <https://spam.ic.ac.uk/SpamConsole/Senders.aspx> to disable email stamping for this address.

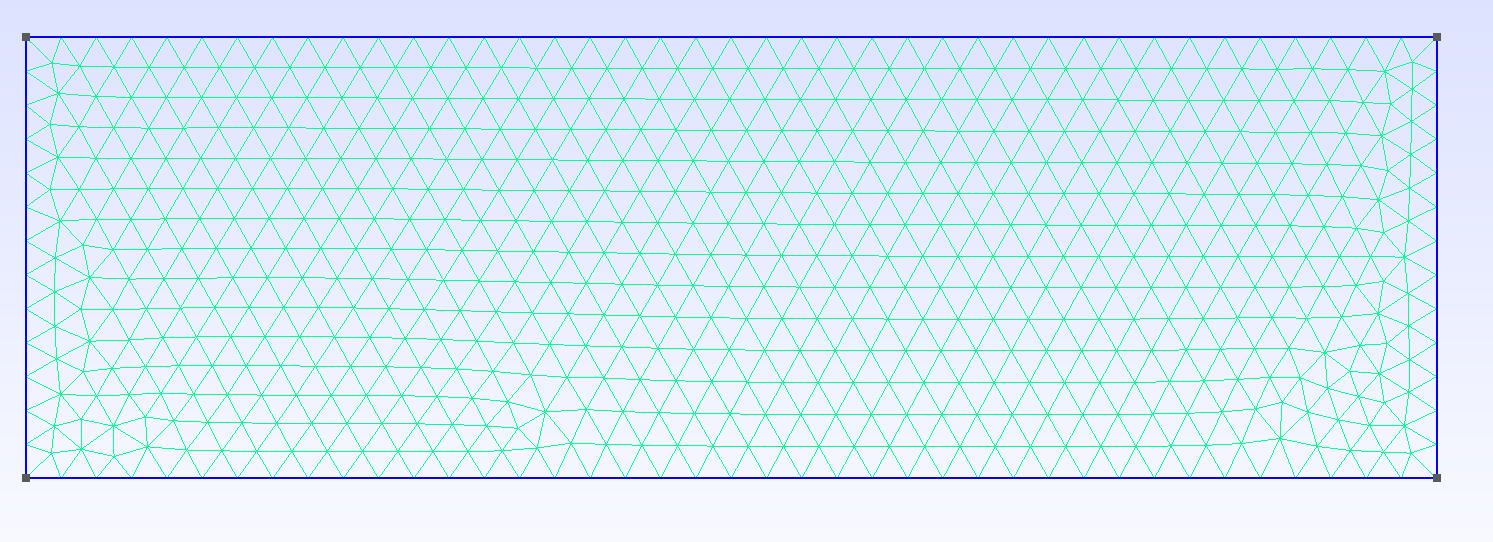

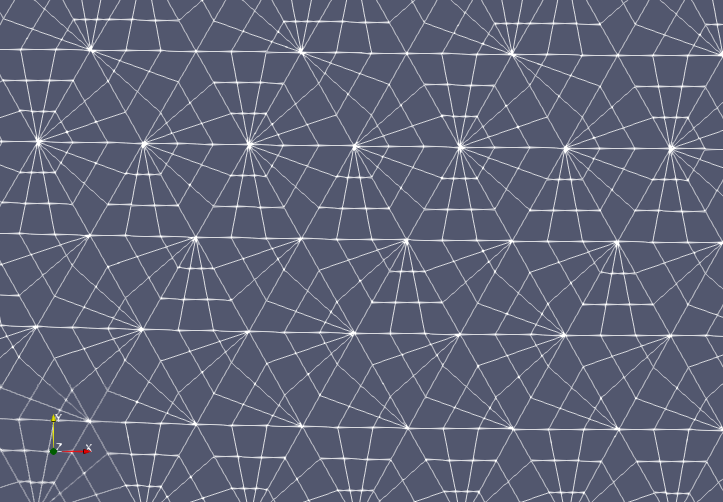

Hello, I currently have an issue with using 2D unstructured meshes in Nektar. The problem seems to be in using NekMesh to convert the .msh to .xml. I have attached the relevant files and an image of the .msh from gmsh and the mesh after being converted to .xml and then .vtu in Nektar. The converted xml appears to have a strange structure, I was wondering if I could get some guidance on how to avoid or fix this issue.

Thanks for your time, Matt Duran Mechanical and Aerospace Engineering University of Central Florida
